Stan LEDx

shape-img

Stan LEDx

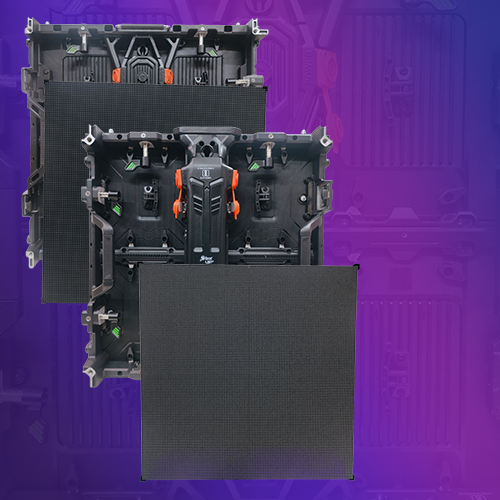

LED Screen P3.91

Basic Parameters

  • Pixel Pitch: 3.91 mm
  • Cabinet Size: 500 mm × 500 mm
  • Module Size: 250 mm × 250 mm
  • Modules per Cabinet: 4 pcs
  • Module Resolution: 64 × 64 dots
  • Cabinet Resolution: 128 × 128 dots
  • Pixel Density: 65,536 dots/㎡

Electrical Parameters

  • Input Voltage: AC 220V 50Hz
  • Working Voltage: DC 5V
  • Average Power Consumption: 220-260 W/㎡
  • Max Power Consumption: 700-750 W/㎡

Display Performance

  • Brightness: 5500 cd/㎡
  • Scan Mode: 1/13 Scan
  • Gray Scale: 16 bit
  • Refresh Rate: 7680 Hz
  • View Angle (H/V): 140° / 120°
  • Driving Mode: Constant Current

Structure & Maintenance

  • Cabinet Material: Die-cast Aluminum
  • Maintenance Mode: Front Maintenance
  • Connection: Signal & Power Cable

Protection & Environment

  • Protection Level: Front IP65
  • Working Temperature: -20℃ ~ +60℃
  • Working Humidity: 10% – 90% RH

Packing

  • 5in1 Wood flight case (All Black color)

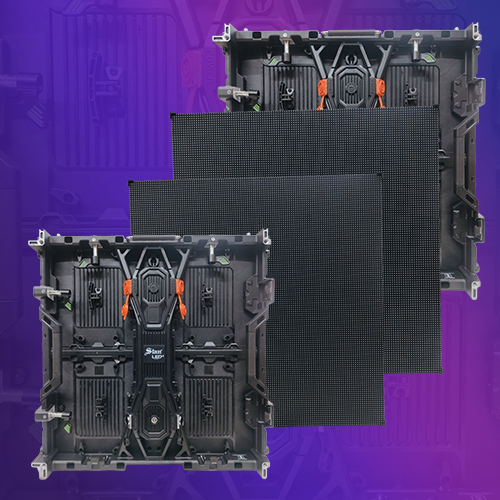

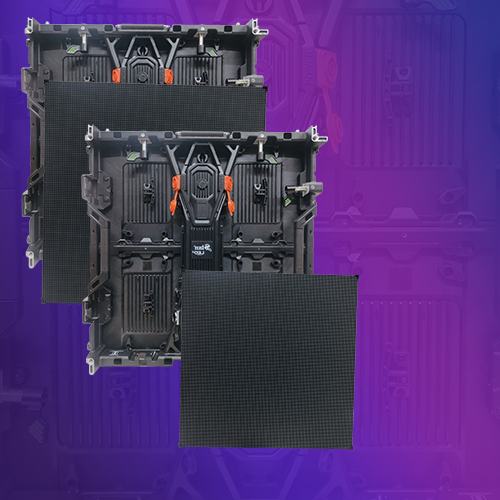

LED Screen P4.8

Basic Parameters

  • Pixel Pitch: 4.8 mm
  • Cabinet Size: 576 x576
  • Module Size: 288 mm × 288 mm
  • Modules per Cabinet: 4 pcs
  • Module Resolution: 60 × 60 dots
  • Cabinet Resolution: 120 × 120 dots
  • Pixel Density: 65,536 dots/㎡

Electrical Parameters

  • Input Voltage: AC 220V 50Hz (India Standard)
  • Working Voltage: DC 5V
  • Average Power Consumption: 180–220 W/㎡
  • Average Power Consumption: 180–220 W/㎡

Display Performance

  • Brightness: 5500 cd/㎡
  • Scan Mode: 1/13 Scan
  • Gray Scale: 16 bit
  • Refresh Rate: 7680 Hz
  • View Angle (H/V): 140° / 120°
  • Driving Mode: Constant Current

Protection & Environment

  • Protection Level: Front IP65
  • Working Temperature: -20℃ ~ +60℃
  • Working Humidity: 10% – 90% RH

Packing

  • 5in1 Wood flight case (All Black color)
