POINTY 20R

High-Performance Sharpy Light for Dynamic Events

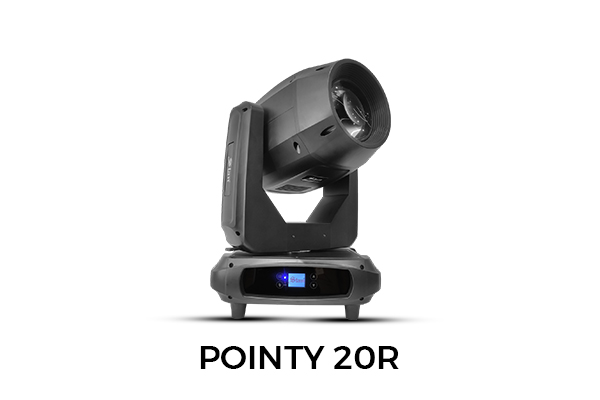

Introducing the POINTY 20R – A high-intensity moving head light designed to create powerful and stunning visual effects. With an advanced Osram 382W lamp, precision optics, and a versatile gobo and prism system, the POINTY 20R is built to elevate stage performances, concerts, and grand events with its superior beam control and color mixing.

POINTY 20R

Voltage: 110V~240V/50-60Hz
Ballast: Electronic ballast
Lamp: Osram 382W (Color Temperature: 8500K)
Life Span: 2000 Hours

Color Wheel: One Color Wheel with 13 Colors + Open
Gobo Wheel: 1 Fixed Gobo + 12 Gobos + Open (one rotation gobo, 8 rotated)
Prism: One Rotated 8-Prism and One 16-Facet Prism
Lens: High Precision Optical Lens
Wash Effect: Adjustable Wash Effects Angle
Strobe: Mechanical Strobe with Adjustable Speed, Macro Function Support

Channel: 24/17CH
Dimmer: 0-100% Electric Dimmer
Pan/Tilt Movement: X Axis 540°, Y Axis 270° (Automatically Accurate Positioning)
Beam Angle: 2.5°-53° (Linear Adjustment)
Control Mode: DMX512 / Master-Slave / Auto-Run
Weight: 25 kg

✅ Powerful Beam Effects: High-output Osram 382W Lamp for stunning brightness
✅ Versatile Gobo & Prism Options: Create captivating patterns and lighting effects
✅ Precision & Control: Advanced movement accuracy & beam angle flexibility
✅ Built for Large-Scale Events: Ideal for concerts, stage shows, and venue lighting
